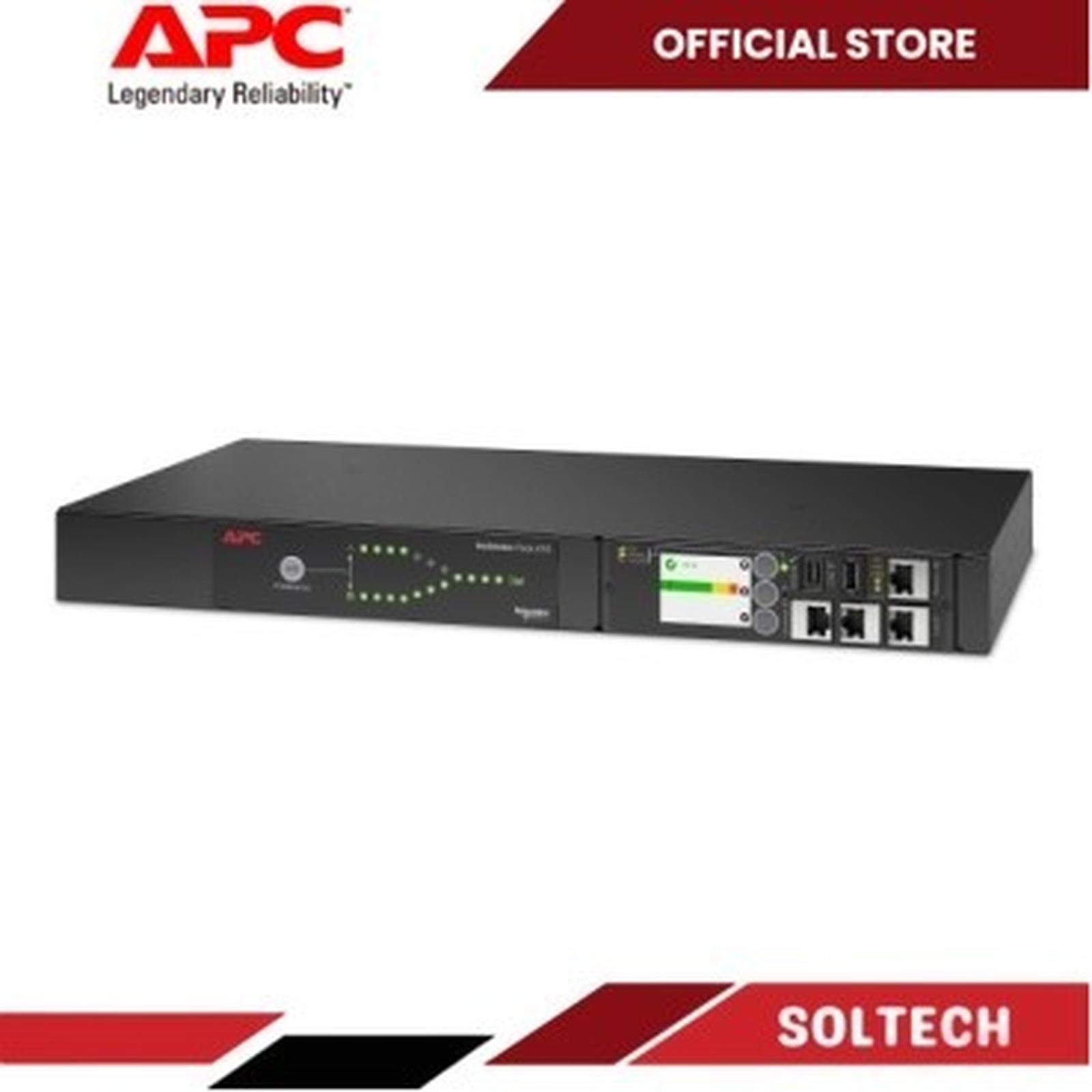

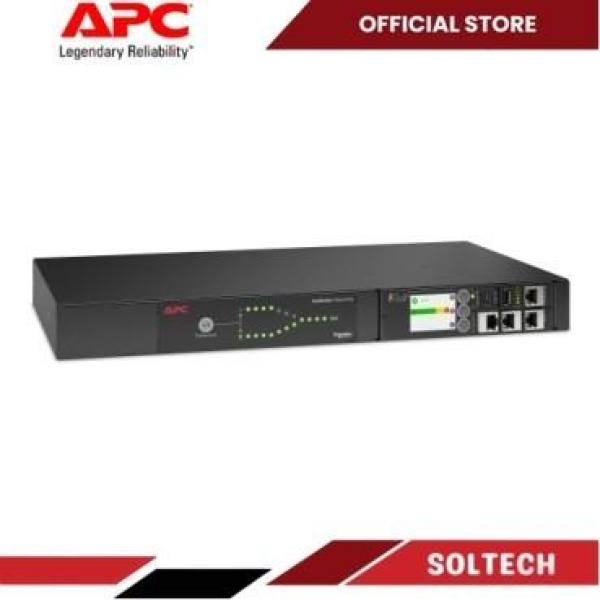

APC AP4421A Display Rack Automatic Transfer Switch 230v 10A

Main:
• Main Input Voltage : 230 V AC 1 phase
• Product or component type : Automatic transfer switch
• Main Output Voltage : 230 V AC 1 phase
• Input Connection Type : IEC 60320 C14 10 A 2P + E
• Number of rack unit : 1U
• Provided equipment :
• Mounting hardware
• Rack mounting brackets

Physical:
• Colour : Black
• Height : 4.4 cm
• Width : 43.2 cm
• Depth : 23.6 cm
• Net weight : 3.93 kg
• Mounting location : Front
• Mounting preference : No preference
• Mounting mode : Rack-mounted
• Mounting position : Horizontal

Input:
• Network frequency : 50/60 Hz
• [In] rated current : 10 A
• Permissible voltage : 207…253 V
• Max line current : 10 A
• Load capacity : 2000 VA

Output:

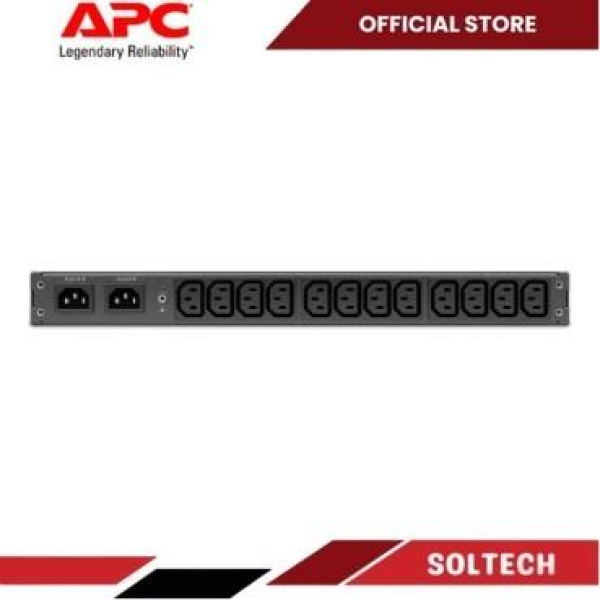

• Number of power socket outlets : 12 IEC 60320 C13 10 A 2P + E
• Number of power socket outlets : 12
• Protection type : Without circuit breaker

Packing Units:
• Unit Type of Package 1 : PCE
• Number of Units in Package 1 : 1
• Package 1 Height : 11.000 cm
• Package 1 Width : 35.000 cm
• Package 1 Length : 60.000 cm
• Package 1 Weight : 5.420 kg
• Unit Type of Package 2 : P12
• Number of Units in Package 2 : 40
• Package 2 Height : 126.000 cm
• Package 2 Width : 80.000 cm
• Package 2 Length : 120.000 cm
• Package 2 Weight : 230.000 kg

Contractual warranty:
• Warranty : 2 years repair or replace
