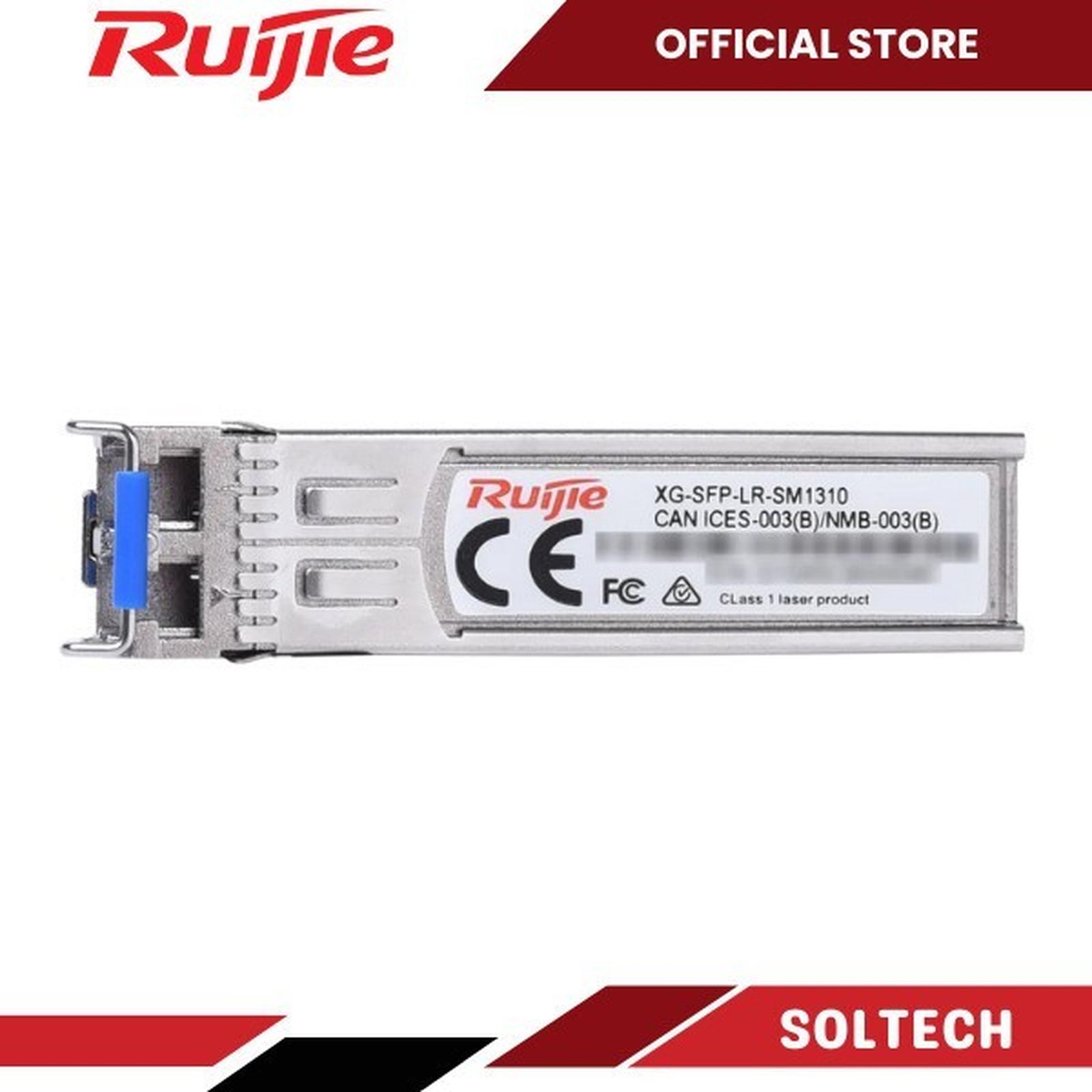

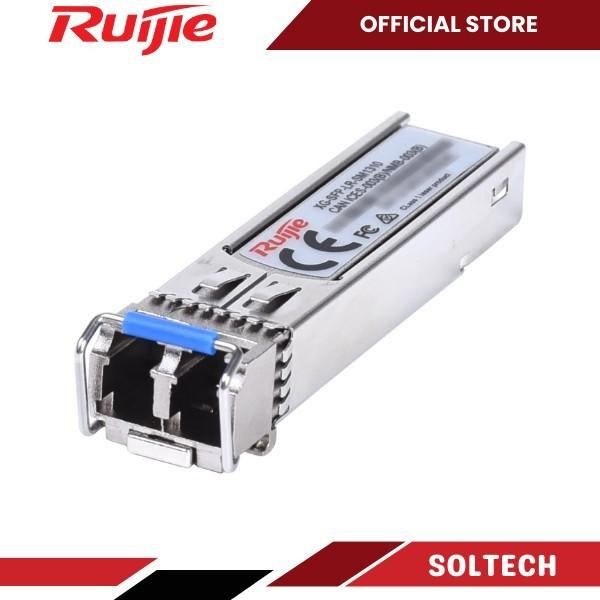

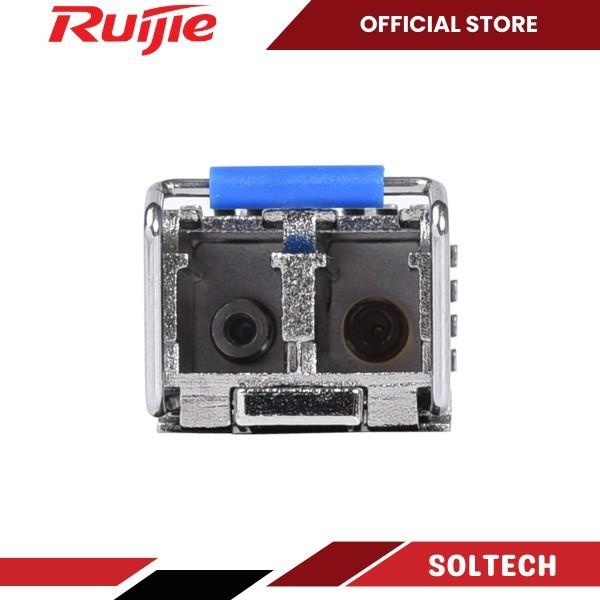

Ruijie Reyee XG-SFP-LR-SM1310 10GBASE-LR SFP+ 1310-nm 10-km DOM Duplex LC SMF Optical Transceiver Module

Spesifikasi :

• Data Rate: 10.3125 Gbps
• Form Factor: SFP+
• Connector Type: Duplex LC
• Cable Type: SMF
• Fiber End Face Finish Type: Ultra Physical Contact (UPC)
• Transmitter Type: DFB
• Receiver Type: PIN
• Reach: 10 km (32,808.40 ft.)
• Bit Error Ratio (BER): 1.00E-12
• Data Diagnosis-Capable (DDM/DOM): Yes
• Power Consumption: ≤ 1.5 W
• Transmitter Optical Parameters
• Wavelength: 1310 nm
• Max. Transmit Power (AVG): 0.5 dBm
• Min. Transmit Power (AVG): –8.2 dBm
• Min. Extinction Ratio: ≥ 3.5 dB
• Receiver Optical Parameters
• Receive Sensitivity (OMA): < –12.6 dBm
• Overload Optical Power (AVG): 0.5 dBm
