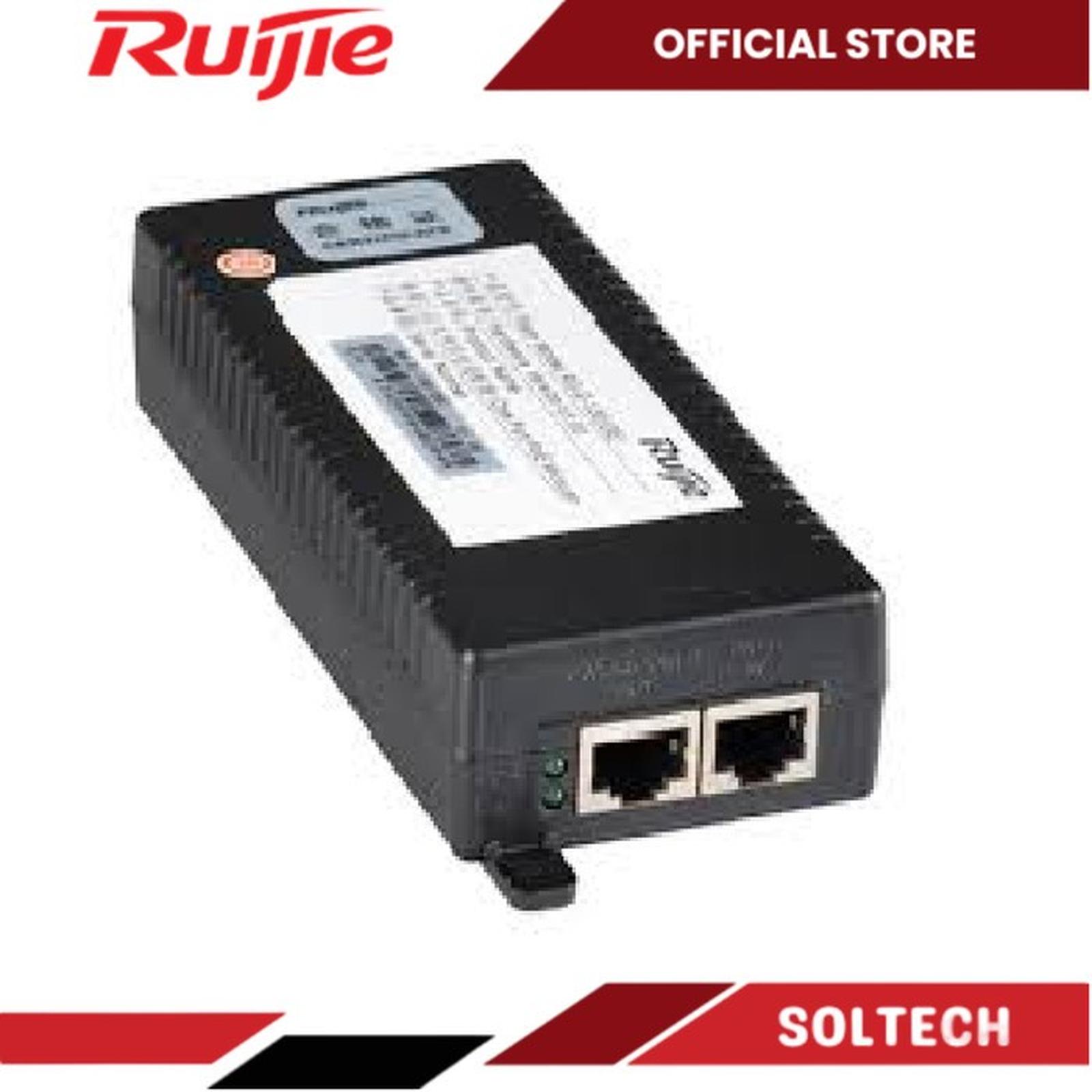

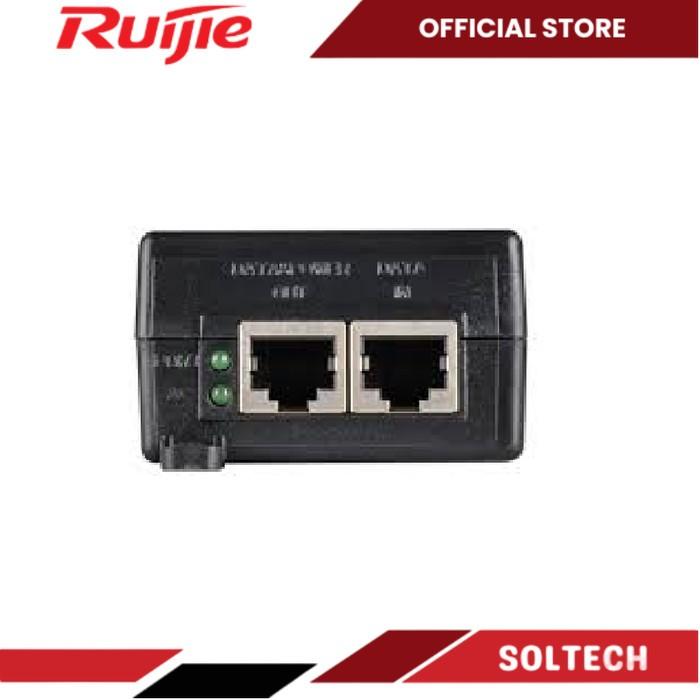

Ruijie RG-E-130(GE) Gigabit PoE Injector

Ruijie RG-E-130 (GE) Power Injector is designed to power remote management products such as wireless access points, SOHO switches, IP phones, webcams and so on. The Power Injector, compliants with IEEE 802.3at standard, are PSE adapters supporting such products with PoE (Power over Ethernet) power supply. All the RJ45 ports on the Power Injector support auto MDI/MDIX cable recognition and the power injectors sustain power transmission via cable for up to 100m, enabling flexible deployment of powered devices (PDs)

Port:
10/100/1000 Mbps Copper port (RJ-45)
10/100/1000 Mbps PoE Copper port (RJ-45)

Power
Output Power Voltage: 53V DC
Output Port Power: 30W

Dimensions
(W x H x L) (mm)
87.9 x 51.3 x166

Weight
350g

Temperature
Operating Temperature: 0C to 45C
Storage Temperature: -30C to 85C

Humidity
Operating Humidity: 5% to 90% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)

Altitude
Operating Altitude: 0 to 3048m

Regulatory Compliance
IEEE 802.3at, IEEE 802.3afRoHS Compliant, WEEE Compliant, CE
