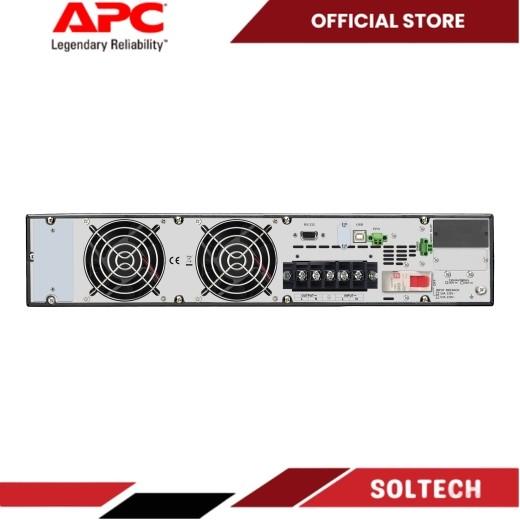

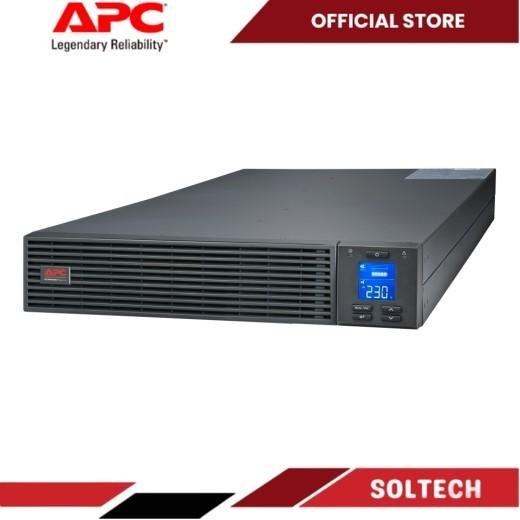

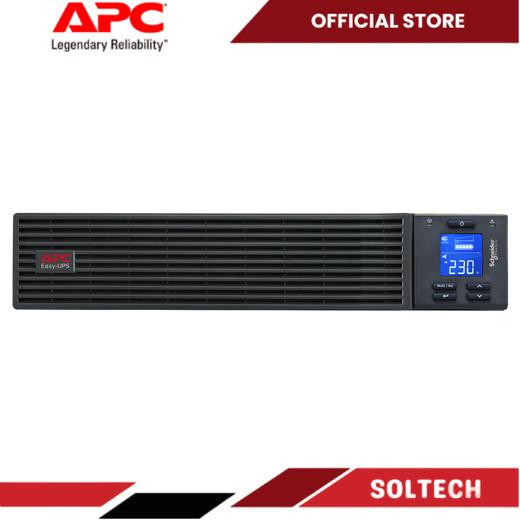

UPS APC On-Line 10kVA/10kW Rackmount 2U 230V 1x Hard wire SRVPM10KRIL

Main:
• Main Input Voltage : 230 V
• Other Input Voltage : 220 V, 240 V
• Main Output Voltage : 230 V
• Other Output Voltage : 220 V, 240 V
• Rated power in W : 10000 W
• Rated power in VA : 10000 VA
• Output connector type : Hard wire 3-wire (1P + N + E) 1
• Number of rack unit : 2U

Batteries & Runtime:
• battery type ; External battery system
• battery voltage ; 240 V
• Number of battery filled slots : 0
• Number of battery free slots : 0
• Battery charger power : 1170 W rated

Input:
• Input voltage limits :
– 110…300 V 60 % load
– 176…300 V full load
• Number of input connectors : 1 hard wire 3-wire (1P + N + E)
• Network frequency : 40…70 Hz auto sensing

Output:
• Maximum configurable power in VA : 10000 VA
• Maximum configurable power in W : 10000 W
• Output frequency : 50/60 Hz +/- 3 Hz sync to mains
• UPS type ; Double conversion online
• Wave type ; Sine wave
• Efficiency : 94 % (full load)
• additional information : Configurable for 220 : 230 or 240 nominal output voltage
• bypass type : Internal bypass (automatic and manual)
• Crest factor ; 3 : 1

UPS APC On-Line 10kVA/10kW Rackmount 2U 230V 1x Hard wire SRVPM10KRIL
